3/16 inch heat shrink tubing fits 12–14 AWG wire — the standard gauge range for automotive lighting circuits, trailer wiring, HVAC control wiring, and residential branch circuit leads. NFPA 70 Table 310.15 rates 14 AWG at 15A and 12 AWG at 20A; ABYC E-11 Table XI uses the same ratings for marine primary wiring in these sizes. At 4.8mm expanded diameter, this tube slides freely over 12 and 14 AWG conductors and recovers to approximately 1.6mm after full heat application. The 3:1 adhesive-lined construction is essential for trailer connector repairs and outdoor lighting harnesses where the junction sees road spray, rain, and seasonal freeze-thaw cycles — the adhesive inner liner flows into voids around the connector body, completely blocking moisture entry that a 2:1 non-adhesive tube leaves open. For completely dry indoor panel wiring, the 2:1 standard is a lower-cost option in this size. The 3/16" size is the standard for covering heat-shrink butt connectors on trailer harness repairs and sealing ring terminal crimps on outdoor lighting circuits where long-term weatherproof protection is the objective.
Order up to 100 online · need more? Trade pricing
Click any size to navigate · 60 ft per roll

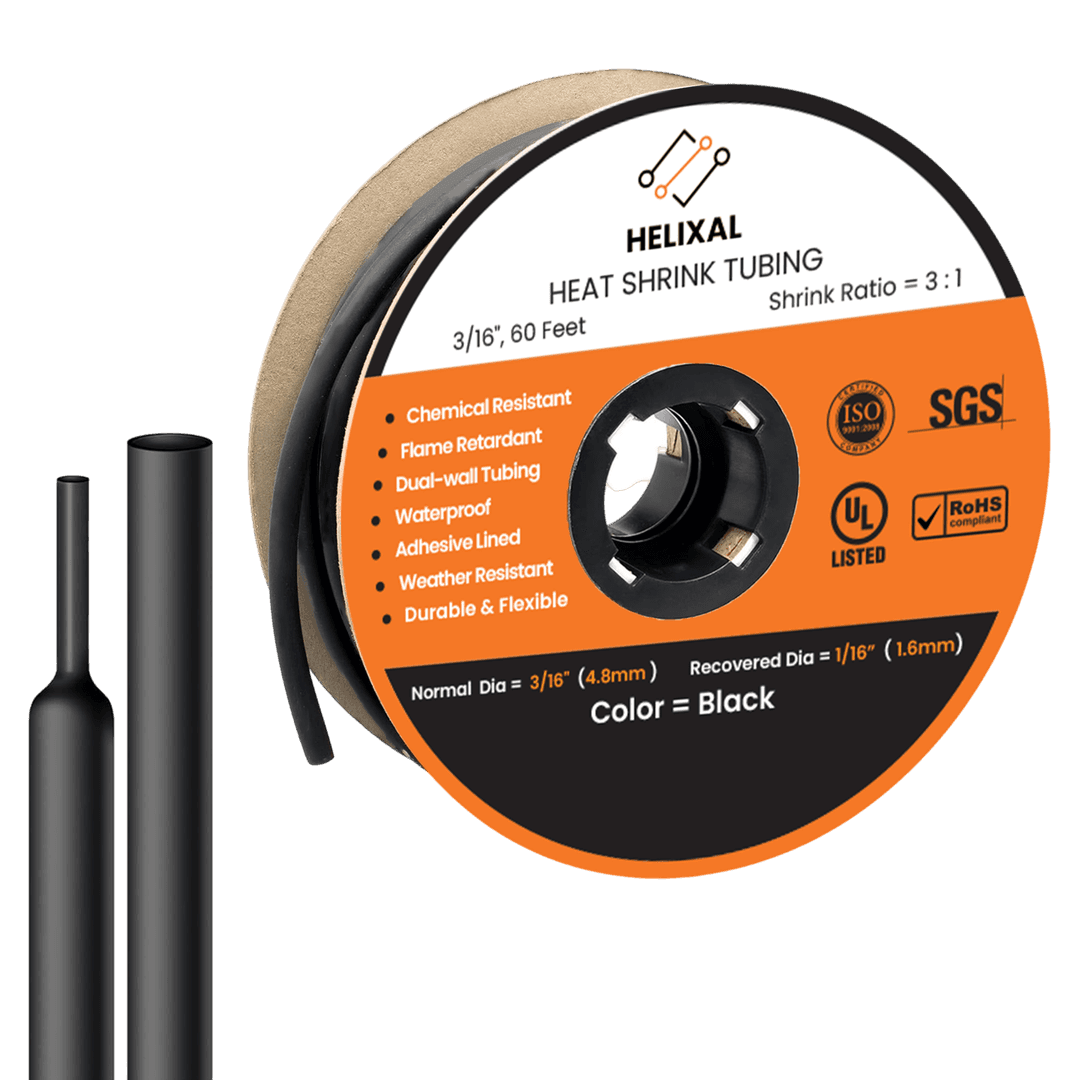

SKU: B0D644SK15 · 3/16" (4.8mm) · 60 ft
Complete dual-wall adhesive performance in a bulk roll format. Permanently waterproof, 600V rated, and rated for the harshest environments.
Sizing over a connector? The Wire Gauge row above is for bare conductor. Heat shrink must be sized to the widest point it passes over, so a crimped butt splice or lug barrel needs a larger tube than the wire alone — a 22–18 AWG splice barrel measures 5–6mm, a 16–14 AWG barrel 7–8mm, and a 12–10 AWG barrel 9–11mm. Measure the barrel, allow about 20% clearance, and confirm the recovered diameter is smaller than the narrowest thing the tube must grip. Use the size calculator.
High quality and amazing value for the price
I'll never buy individual bags of heat shrink tubing again. This is very high quality with a shrink ratio that is truly amazing (all of the tubing from this company is). I wonder if I'll be able to use this entire roll in 10 years!
Good quality and sealing heat shrink
Heat shrink works good. Bought this for work. Makes a nice sealed wire connection. Good quality, better than pre cut heat shrink, you can make whatever length you want.
I LIKE THIS!
I solder, and heat shrink, all of my automotive electrical connections. This is a great product, and I can cut it to any length. The price is great, and the shipping was fast!
Loading reviews…
3/16 inch (4.8mm) is sized for bare 12–14 AWG — the gauge that carries bilge pumps, navigation lights, trailer harnesses and residential branch circuits. NFPA 70 Table 310.15 rates 14 AWG at 15A and 12 AWG at 20A, and ABYC E-11 Table XI carries the same figures for marine primary wire. It is also the gauge where a wet joint stops being an inconvenience and becomes a pump that will not start.
Almost nobody uses 3/16 inch alone. A crimped 16–14 AWG splice barrel measures 7–8mm, which will not enter a 4.8mm bore, so the splice takes 3/8 inch while the conductor either side of it takes 3/16 inch. Anyone working this gauge regularly ends up holding both diameters, and running out of one strands the other.
That pairing is the practical form of the sizing rule: choose the tube from the widest point it has to pass over, then confirm the recovered diameter is still smaller than the narrowest thing it has to grip. 3/16 inch recovers to roughly 1.6mm, well under 12 and 14 AWG insulation, so it grips hard on the conductor and would never have reached the barrel.
The failure that follows from getting this wrong is specific. A tube stretched over a barrel it was never sized for goes on under tension, traps air at the shoulder and recovers with a void at exactly the point water enters. The joint looks finished and is not sealed, which is worse than leaving it bare, because nobody re-inspects a joint that looks done.
| Property | Figure | Why it matters |
|---|---|---|
| Expanded diameter | 4.8mm (3/16") | Clears bare 12 and 14 AWG with working clearance |
| Recovered diameter | ≈1.6mm | Grips the conductor; far too small for any crimp barrel |
| Bare wire range | 12–14 AWG | 15A for 14 AWG, 20A for 12 AWG (NFPA 70 Table 310.15) |
| Splice barrel on this gauge | 7–8mm | Needs 3/8 inch — stock the two sizes together |
| Wall type | 3:1 dual wall, hot-melt lined | Blocks the capillary path along the strands |
| Roll length | 60 ft | A season of trailer, lighting and bilge repairs |
Allow roughly 20% clearance on the expanded figure. If the tube drags going on cold, it is the wrong size — step up rather than force it.
The barrel is the widest point, not the wire. A crimped 16–14 AWG butt splice needs 3/8 inch. Keep 3/16 inch for the conductor runs either side.
If the joint will never see moisture, the 3/16" 2:1 gives the same insulation and band marking at a lower cost per foot. The adhesive liner is what you pay for here, so buy it where it does work.
The 60ft roll is a stocking quantity. A single trailer or bilge repair is better served by the 10ft short pack of the same tubing.
Rated 600V rms. On a 1000V circuit the conductor must already carry its own insulation rating, and the adhesive liner acts as a seal over an already-rated component.
Keep reading →3/8" 3:1 Dual Wall — the size for the splice · Best Heat Shrink for Marine Wiring · Boat Wiring Maintenance Checklist
Verify the expanded diameter is 20–30% larger than your wire or connector. The tubing must slide freely before heat is applied — if it drags, go one size up.
Cut to length and thread onto the wire or cable before making the splice or crimp. Overlap each terminal or connector end by at least 10mm for a proper seal.
The tubing starts shrinking at 100°C, but the adhesive liner only flows at 120°C — so keep the heat gun moving past the point where it looks shrunk. Start at the center and work outward to push air toward the ends. Adhesive will appear at the tube ends — that is your visual seal indicator.
The tubing should be tight and uniform with adhesive visible at both ends. No gaps, lifting, or cold spots. Pull-test the finished connection to confirm the adhesive bond.
Actual 3/16" tube at full expanded diameter (4.8mm) and after heat recovery. Use this as your fit reference before cutting.
Seals LED strip connections, lamp socket splices, and lighting control wiring exposed to vibration or condensation. 3:1 ratio fits tight spaces.
Protects delicate instrumentation wiring from moisture ingress. Adhesive liner prevents capillary wicking along fine conductors.
Seals trailer connector repairs and small harness splices from road spray, salt, and standing water without special tooling.
Covers solder joints and wire-to-board connections where a watertight, flexible sleeve is required on a confined circuit board.
Used for insulation of thermocouple wire, RTD leads, and signal wiring inside outdoor or wash-down rated enclosures.
Protects under-dash splices, amplifier signal cables, and small connector terminations from moisture and abrasion.
Recovered diameter is approx. 1/3 of the expanded size shown · All sizes ship to USA & Canada
