Better than electrical tape by far!
Used this on vehicles (starters) and trailer lights. Easy to use, looks like a professional fitting, and seems to hold tight.
Verified Buyer · Verified Purchase★ Verified
3:1 Dual Wall · 10ft Short Pack
3/16"
3:1 Heat Shrink
Fits12–14 AWG4.8mm
3/16 inch heat shrink tubing fits 12–14 AWG wire — the workhorse gauge for trailer harnesses, automotive lighting, bilge pump runs, and residential branch circuits. NFPA 70 Table 310.15 rates 14 AWG at 15A and 12 AWG at 20A, and ABYC E-11 Table XI carries the same ratings for marine primary wire. At 4.8mm expanded, the tube slides over bare 12 and 14 AWG conductors and recovers to roughly 1.6mm. Size to the connector, not the copper: a crimped 16–14 AWG splice barrel runs 7–8mm, so the splice wants 3/8 inch while the conductor either side takes 3/16 inch. This is where dual wall earns its price — single-wall tubing lets salt water wick along the strands by capillary action, while the hot-melt liner flows at 120°C and blocks it. UL 224 rated, 600V, -55°C to +125°C. Ten feet is the right quantity for a season of spot repairs.
★★★★★4.7 · 225 verified ratings across the Helixal range
53 in stock · Ships in 24h
Order up to 53 online · need more? Trade pricing
Size3/16" · 4.8mm
Click any size to navigate · 10 ft per roll
$7.3910 ft spool
→ Dispatched within 24 hours — delivered in 1–3 days→ 30-day money-back guarantee — 30 days to return it
Qty
1
Secured by Stripe · No account needed
→Ships USA & Canada
→ISO 9001
→Ships 24h

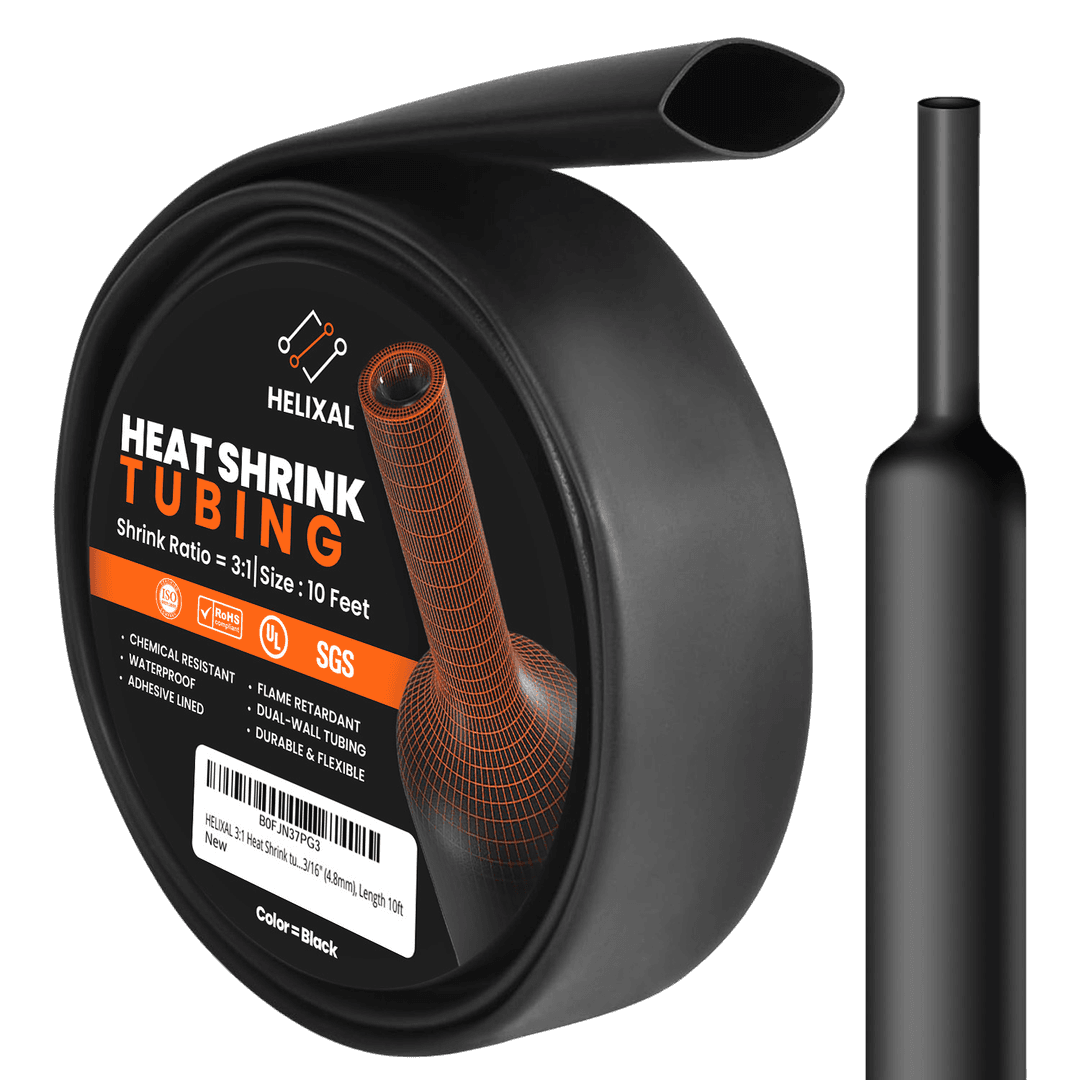

SKU: B0FJN37PG3 · 3/16" (4.8mm) · 10 ft
Spec Sheet
3/16"
data sheet.
Full industrial dual-wall adhesive spec in a convenient 10ft pack. Same 600V rated, waterproof polyolefin construction as the large bulk rolls.
Imperial Size
3/16"
Expanded diameter
Metric Size
4.8mm
Nominal
Roll Length
10 ft
Per spool
Wire Gauge
12–14 AWG
Bare conductor
Shrink Ratio
3:1
Dual wall
Construction
Dual Wall
Adhesive inner liner
Inner Layer
Hot Melt Adhesive
Waterproof seal
Voltage Rating
600V AC
UL 224 — 600 V rms
Temp Rating
-55°C to +125°C
Continuous service
Shrink Temp
100°C (212°F)
Shrinking starts
Adhesive Flow
120°C (248°F)
Keep heating until it shows
Material
Polyolefin
Outer sleeve
Flammability
Self-extinguishing
UL 224 Recognized
Color
Black
Standard finish
Standards
UL 224 Recognized
UL file E361230 · RoHS
UV Resistance
Yes
Outdoor safe
Waterproof
Yes — adhesive seal
360° coverage
Sizing over a connector? The Wire Gauge row above is for bare conductor. Heat shrink must be sized to the widest point it passes over, so a crimped butt splice or lug barrel needs a larger tube than the wire alone — a 22–18 AWG splice barrel measures 5–6mm, a 16–14 AWG barrel 7–8mm, and a 12–10 AWG barrel 9–11mm. Measure the barrel, allow about 20% clearance, and confirm the recovered diameter is smaller than the narrowest thing the tube must grip. Use the size calculator.
What the
trade says.
Verified Buyers ★ · Full Range4.7★★★★★225 ratings · 84% 5-starCombined verified-buyer rating for every Helixal product — all ratios, all sizes — not this size alone.
Good quality and sealing heat shrink
Heat shrink works good. Makes a nice sealed wire connection. Better than pre-cut heat shrink — you can make whatever length you want.
R Davis · Verified Purchase★ Verified
Smart format for repair work
Great for keeping several sizes on hand without the bulk. Same quality as the large rolls — the adhesive seals perfectly every time.
Travis M. · Verified Purchase★ Verified
Customer Reviews
Loading reviews…
Sizing & Application — 3/16 inch, 10ft pack
The size that belongs in the van, and the one it has to travel with.
3/16 inch (4.8mm) fits bare 12–14 AWG — bilge pumps, navigation lights, trailer harnesses, branch circuits. NFPA 70 Table 310.15 rates 14 AWG at 15A and 12 AWG at 20A. It is the highest-frequency spot-repair diameter on a service vehicle, and it is also the one that is useless on its own, because the repairs it turns up for almost always involve a crimp it cannot cover.
Building a repair kit around the conductor-and-splice pair
A call-out at this gauge is typically a failed joint rather than a failed cable. The fix is to cut back to clean copper, crimp a new splice, and seal both the splice and the conductor either side of it. Those are two different diameters: 3/8 inch over the 7–8mm barrel, 3/16 inch on the wire.
Carry only one and the job stops. Carry a 60ft roll of each and you are hauling 120 feet of tubing to a repair that consumes eighteen inches, in a vehicle where space is the scarce resource. Two ten-foot packs weigh almost nothing, take a fraction of a drawer, and cover a season of this work.
That is the argument for the short format on a service vehicle generally: it is not about the money, it is that a van carrying four diameters in packs can finish more jobs than one carrying a single diameter in bulk. Restock the packs that empty rather than committing shelf space to a roll per size.
3/16 inch short pack at a glance
| Property | Figure | Why it matters |
|---|---|---|
| Expanded diameter | 4.8mm (3/16") | Clears bare 12 and 14 AWG with working clearance |
| Recovered diameter | ≈1.6mm | Grips the conductor; far too small for a crimp barrel |
| Bare wire range | 12–14 AWG | 15A for 14 AWG, 20A for 12 AWG (NFPA 70 Table 310.15) |
| Pairs with | 3/8 inch, for the 7–8mm splice barrel | One repair needs both diameters |
| Pack yield | ≈30 pieces at 4 in | A season of trailer, lighting and bilge repairs |
| Bulk equivalent | 60 ft roll | Workshop stock; the pack is vehicle stock |
ABYC E-11 calls for adhesive-lined heat shrink over crimped connections in marine service, which is why the repair kit version of this size is dual wall rather than single.
When a pack is not the right format
01 · You are rewiring, not repairing
A full boat or trailer rewire runs through this diameter quickly. At that scale the 60ft roll is both cheaper and fewer joins in the middle of a run.
02 · The joint is a splice
A crimped 16–14 AWG barrel measures 7–8mm and will not enter a 4.8mm bore. That is the 3/8 inch pack, not this one.
03 · Everything stays inside a dry panel
Where no water reaches, the 3/16" 2:1 does the insulation and band marking for less per foot.
04 · Above 600V
We hold 600V rms and nothing above it. On a 1000 Vdc array the conductor must already be rated for the circuit.
Keep reading →3/8" 3:1 Dual Wall — 10ft pack for the splice · Boat Wiring Maintenance Checklist · How to Waterproof Wire Connections
How it shrinks.
01
Measure & Select
Verify the expanded diameter is 20–30% larger than your wire or connector. The tubing must slide freely before heat is applied — if it drags, go one size up.
02
Cut & Thread
Cut to length and thread onto the wire or cable before making the splice or crimp. Overlap each terminal or connector end by at least 10mm for a proper seal.
03
Apply Heat
The tubing starts shrinking at 100°C, but the adhesive liner only flows at 120°C — so keep the heat gun moving past the point where it looks shrunk. Start at the center and work outward to push air toward the ends. Adhesive will appear at the tube ends — that is your visual seal indicator.
04
Inspect
The tubing should be tight and uniform with adhesive visible at both ends. No gaps, lifting, or cold spots. Pull-test the finished connection to confirm the adhesive bond.

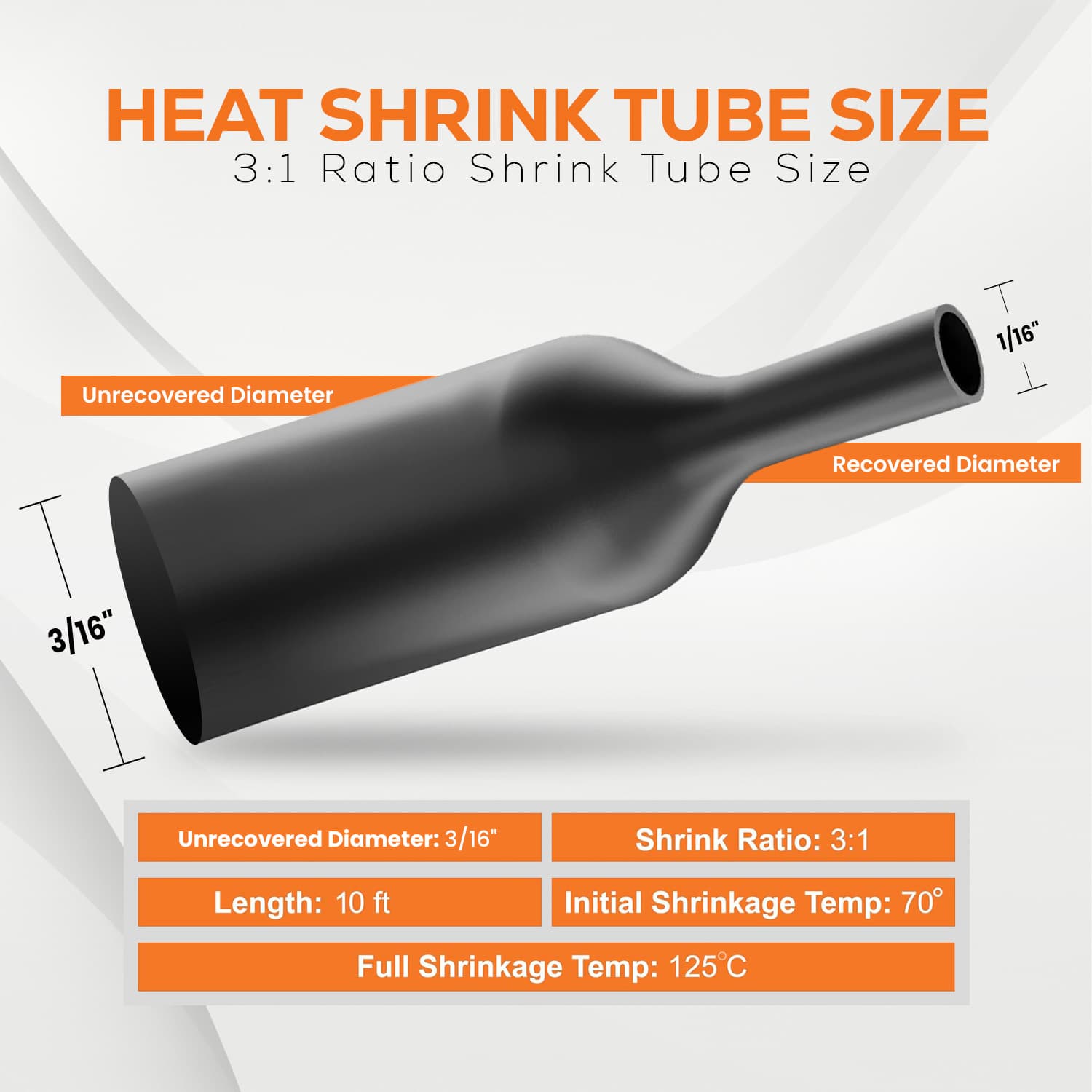

Size ReferenceExpanded vs.
Expanded vs.
recovered.
Actual 3/16" tube at full expanded diameter (4.8mm) and after heat recovery. Use this as your fit reference before cutting.
Expanded: 4.8mm — slides over 12–14 AWG
Shrink ratio: 3:1 on full heat
Use it on.
01
Try Before You Buy Bulk
Order a 10ft pack to verify the size fits your connector before committing to a large roll. Test fit, shrink one piece, then buy the bulk roll with confidence.
02
Field Repair Kits
Keep a set of short rolls on the service van or boat. Enough for any repair job without hauling large rolls — one 10ft roll handles most splices.
03
Stock Multiple Sizes Cheap
For the same cost as one large roll, stock several different sizes in short packs. Covers more connector diameters for the same investment.
04
Marine & Outdoor Spot Repairs
Seals individual connections on boat wiring, outdoor electrical, and trailer harnesses. Same waterproof adhesive seal as the large rolls — just 10ft.
05
Low-Volume Production
Ideal for small-batch cable assembly and prototype builds where a full bulk roll would sit unused. Cost-effective for runs of fewer than 50 connections.
06
One-Off Automotive Builds
Custom automotive and motorcycle builds often need several sizes in small quantities. Short rolls let you match every connection without leftover material.
Size Guide
3/16" Questions.
Technical Guides
All Guides →From the Blog
Free Tool
Heat Shrink Size Calculator
Read Guide →Ratios2:1 vs 3:1 vs 4:1 Heat Shrink Ratio Guide
Read Guide →Complete GuideHeat Shrink Tubing: The Complete Guide
Read Guide →SizingSize Chart & Selection Guide
Read Guide →How-ToHeat Shrink for Battery Terminals
Read Guide →AutomotiveAutomotive Wire Protection Guide
Read Guide →Also available — 3/16" in other lines
All 13 sizes.
View line overview →3/32"2.4mm10 ft1/8"3.2mm10 ft
Current3/16"4.8mm10 ft
1/4"6.4mm10 ft5/16"8mm10 ft3/8"9.5mm10 ft1/2"12.7mm10 ft5/8"16mm10 ft3/4"19.1mm10 ft1"25.4mm10 ft1-1/4"31mm10 ft1-1/2"38mm10 ft2"50.8mm10 ftRecovered diameter is approx. 1/3 of the expanded size shown · All sizes ship to USA & Canada
