Will 1/2 inch heat shrink fit over a 2 AWG lug?

No, and this is the most common sizing mistake at this diameter. A lug crimped onto 2 AWG is far wider than the cable — barrel plus inspection window often exceeds 15mm, against a 12.7mm expanded bore. Use 1/2" along the cable run and step up to 5/8" or 3/4" at the terminated lug.

Is 1/2 inch dual wall heat shrink waterproof?

Yes. The adhesive liner flows at 120°C and seals against battery acid, salt spray, and road film — the three things that destroy an unsealed battery cable termination. UL 224, 600V, -55°C to +125°C.

Is a 10ft roll enough for a battery relocation?

Yes for the cable run itself. Ten feet of 1/2" covers a typical battery relocation without buying a full spool, though you should stock 5/8" or 3/4" separately for the lug ends, which need the larger bore.

Is the 600V rating AC or DC?

AC. Heat shrink tubing is rated under UL 224, which expresses voltage in volts rms — so our 600V tubing is rated 600 V rms, and we hold no rating above it. The UL 224 standard ratings are 150V, 300V and 600V; since Edition 8, published February 2026, an optional higher voltage rating is also available, which our tubing does not carry. On any circuit above 600V — a 1000 Vdc solar string, for example — the conductor itself must carry the insulation rating, UL 4703 PV wire or RHW-2/USE-2, both rated 2000V, with heat shrink used as a sealing cover over those already-rated components rather than as the primary insulation.

Will a 1/2" 10ft pack work on 1000V solar wiring?

Yes — as a seal, not as insulation. This 1/2" (12.7mm) tubing is rated 600 V rms, and we hold no rating above it, so it is not the insulation of record on a 1000 Vdc string: the conductor carries that rating, UL 4703 PV wire or RHW-2/USE-2, both rated 2000V. The 10ft pack is sized for spot repairs to 2–4 AWG conductors already in service, and the voltage class is identical to the large rolls. If a supplier offers you 1000V rated tubing, ask which standard, edition and file number backs the number.

3:1 · 1/2" · 10 ft● LIVE SPEC

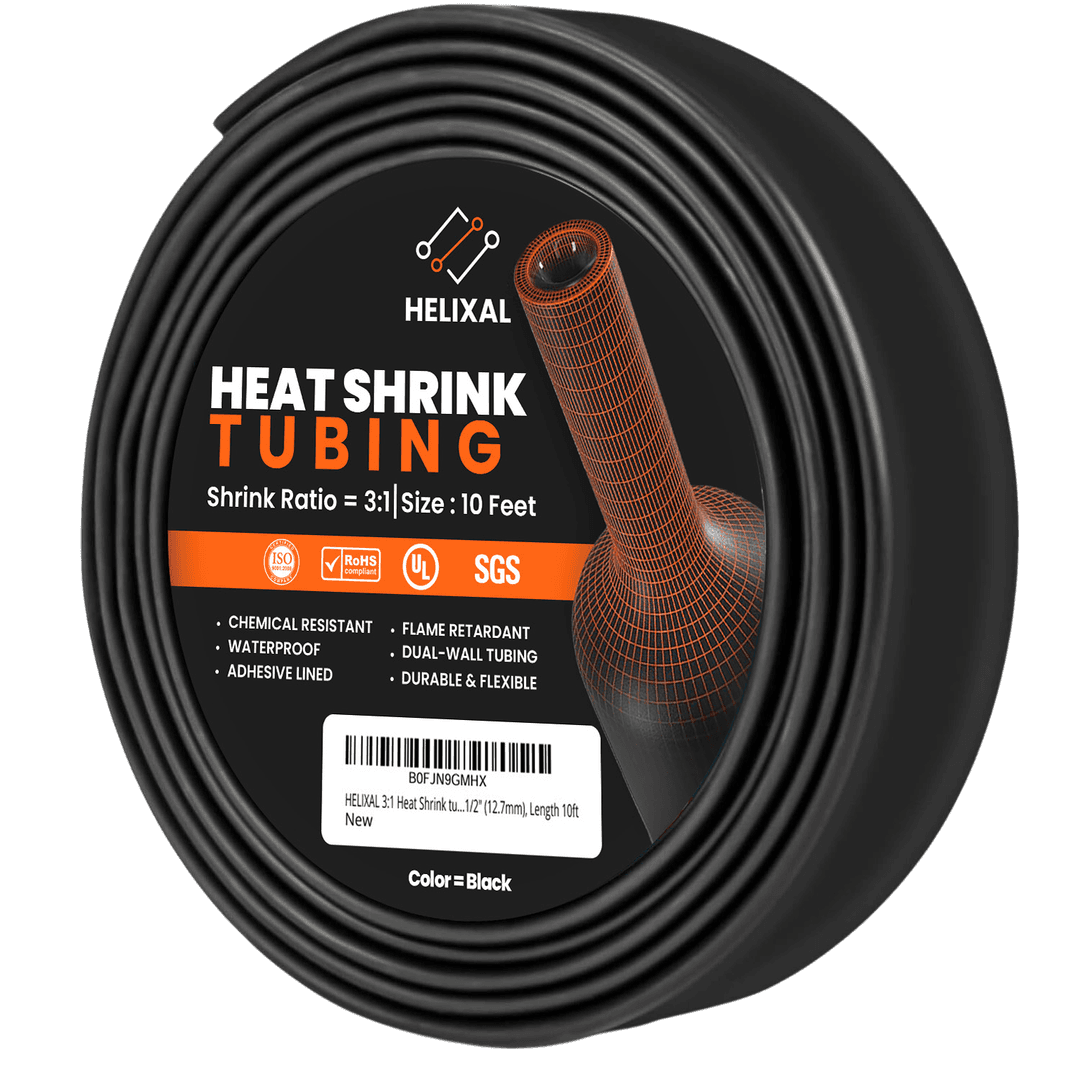

10ft Short PackAdhesive Liner600V Rated HELIXAL 3:1 Dual Wall Heat Shrink Tubing 1/2" (12.7mm) — 10ft Short Pack

BLACK · 1/2" · 10 FTHELIXAL · ISO 9001

3:1 Dual Wall · 10ft Short Pack

1/2"
3:1 Heat Shrink

Q: What size wire does 1/2 inch heat shrink fit?

Helixal 1/2" (12.7mm) 3:1 short roll heat shrink fits bare 2–4 AWG battery cable and seals crimped 12–10 AWG splice barrels, which measure 9–11mm. ABYC E-11 Table XI rates 4 AWG at 70A and 2 AWG at 95A. It recovers to roughly 4.2mm.

Fits2–4 AWG12.7mm

1/2 inch heat shrink tubing fits bare 2–4 AWG battery cable and seals crimped 12–10 AWG splice barrels, which measure 9–11mm. ABYC E-11 Table XI rates 4 AWG at 70A and 2 AWG at 95A. At 12.7mm expanded, the tube slides over bare 2 and 4 AWG conductors and recovers to roughly 4.2mm. One caution the size charts rarely state: a lug crimped onto 2 AWG is far wider than the cable itself, and barrel plus inspection window often exceeds 15mm — so a terminated 2 AWG lug needs 5/8 inch or 3/4 inch, not 1/2 inch. Use this size along the cable run and step up at the termination. The adhesive liner flows at 120°C and seals against battery acid, salt spray, and road film. UL 224, 600V, -55°C to +125°C. Ten feet covers a battery relocation without buying a full spool.

★★★★★4.7 · 225 verified ratings across the Helixal range

19 in stock · Ships in 24h

Order up to 19 online · need more? Trade pricing

Size1/2" · 12.7mm

3/32"1/8"3/16"1/4"5/16"3/8"1/2"5/8"3/4"1"1-1/4"1-1/2"2"

Click any size to navigate · 10 ft per roll

$8.6510 ft spool

→ Dispatched within 24 hours — delivered in 1–3 days→ 30-day money-back guarantee — 30 days to return it

Qty

Secured by Stripe · No account needed

Trade pricingWholesale →

→Ships USA & Canada

→ISO 9001

→Ships 24h

SKU: B0FJN9GMHX · 1/2" (12.7mm) · 10 ft

Spec Sheet

1/2"
data sheet.

Full industrial dual-wall adhesive spec in a convenient 10ft pack. Same 600V rated, waterproof polyolefin construction as the large bulk rolls.

Imperial Size

1/2"

Expanded diameter

Metric Size

12.7mm

Nominal

Roll Length

10 ft

Per spool

Wire Gauge

2–4 AWG

Bare conductor

Shrink Ratio

3:1

Dual wall

Construction

Dual Wall

Adhesive inner liner

Inner Layer

Hot Melt Adhesive

Waterproof seal

Voltage Rating

600V AC

UL 224 — 600 V rms

Temp Rating

-55°C to +125°C

Continuous service

Shrink Temp

100°C (212°F)

Shrinking starts

Adhesive Flow

120°C (248°F)

Keep heating until it shows

Material

Polyolefin

Outer sleeve

Flammability

Self-extinguishing

UL 224 Recognized

Color

Black

Standard finish

Standards

UL 224 Recognized

UL file E361230 · RoHS

UV Resistance

Yes

Outdoor safe

Waterproof

Yes — adhesive seal

360° coverage

Sizing over a connector? The Wire Gauge row above is for bare conductor. Heat shrink must be sized to the widest point it passes over, so a crimped butt splice or lug barrel needs a larger tube than the wire alone — a 22–18 AWG splice barrel measures 5–6mm, a 16–14 AWG barrel 7–8mm, and a 12–10 AWG barrel 9–11mm. Measure the barrel, allow about 20% clearance, and confirm the recovered diameter is smaller than the narrowest thing the tube must grip. Use the size calculator.

What the
trade says.

Verified Buyers ★ · Full Range4.7★★★★★225 ratings · 84% 5-starCombined verified-buyer rating for every Helixal product — all ratios, all sizes — not this size alone.

★★★★★

Better than electrical tape by far!

Used this on vehicles (starters) and trailer lights. Easy to use, looks like a professional fitting, and seems to hold tight.

Verified Buyer · Verified Purchase★ Verified

★★★★★

Good quality and sealing heat shrink

Heat shrink works good. Makes a nice sealed wire connection. Better than pre-cut heat shrink — you can make whatever length you want.

R Davis · Verified Purchase★ Verified

★★★★★

Smart format for repair work

Great for keeping several sizes on hand without the bulk. Same quality as the large rolls — the adhesive seals perfectly every time.

Travis M. · Verified Purchase★ Verified

Customer Reviews

Loading reviews…

Write a review →

Sizing & Application — 1/2 inch, 10ft pack

A battery relocation needs two diameters. This is one of them.

1/2 inch (12.7mm) slides over bare 2–4 AWG battery cable and seals crimped 12–10 AWG splice barrels at 9–11mm. ABYC E-11 Table XI rates 4 AWG at 70A and 2 AWG at 95A. What it will not do is pass over the lug on the end of that cable, and understanding why turns a relocation into a two-pack purchase rather than a frustrating afternoon.

The run and the ends are different sizing problems

Bare 2 AWG cable measures around 10mm over the jacket, so a 12.7mm tube passes over the run comfortably and recovers to about 4.2mm — well down onto the jacket, gripping properly. Along the cable this is exactly the right size, and it is where most of the tubing on a relocation goes.

The ends are a different measurement entirely. A lug crimped onto 2 AWG has a barrel of 13–15mm and a palm wider still, so barrel plus inspection window commonly exceeds 15mm. That is past a 12.7mm bore, and not by a little. The lug ends need 3/4 inch, which is a separate pack.

Buying both as packs is the sensible shape for this job. A relocation uses six to ten feet of the run size and perhaps two feet across four lug ends — quantities that two ten-foot packs cover exactly, where two bulk rolls would leave you holding eighty surplus feet of tubing in two diameters you may not touch again.

1/2 inch short pack at a glance

Property	Figure	Why it matters
Expanded diameter	12.7mm (1/2")	Clears bare 2–4 AWG cable and 9–11mm splice barrels
Recovered diameter	≈4.2mm	Closes well down onto a battery cable jacket
Bare cable range	2–4 AWG	70A for 4 AWG, 95A for 2 AWG (ABYC E-11 Table XI)
A lug on 2 AWG measures	Often over 15mm	Past this bore — the ends need the 3/4 inch pack
Relocation uses	6–10 ft of run size	One pack, with the lug ends bought separately
Bulk equivalent	60 ft roll	Six relocations — shop stock rather than job stock

The adhesive liner seals against battery acid, salt spray and road film. Those three are why a covered battery termination is not the same as a sealed one.

What this pack does not cover

01 · The lug ends

Barrel plus palm on 2 AWG regularly exceeds 15mm. Buy the 3/4 inch pack for the terminations and use this one along the run.

02 · A thin jacket

Below about 5mm the recovered wall is not gripping much. Step down to the 3/8 inch pack so the tube closes onto the cable properly.

03 · Dry indoor cable runs

Inside a conditioned battery room the job is identification and abrasion, and the 1/2" 2:1 does that on a 120ft roll for less per foot.

04 · Above 600V

Rated 600V rms. On a 1000 Vdc system the conductor carries the insulation rating and heat shrink is a seal over an already-rated component.

Keep reading →3/4" 3:1 Dual Wall — 10ft pack for the lug ends · Heat Shrink for Battery Terminals · 1/2" 3:1 Dual Wall — 60ft bulk roll

How it shrinks.

Measure & Select

Verify the expanded diameter is 20–30% larger than your wire or connector. The tubing must slide freely before heat is applied — if it drags, go one size up.

Cut & Thread

Cut to length and thread onto the wire or cable before making the splice or crimp. Overlap each terminal or connector end by at least 10mm for a proper seal.

Apply Heat

The tubing starts shrinking at 100°C, but the adhesive liner only flows at 120°C — so keep the heat gun moving past the point where it looks shrunk. Start at the center and work outward to push air toward the ends. Adhesive will appear at the tube ends — that is your visual seal indicator.

Inspect

The tubing should be tight and uniform with adhesive visible at both ends. No gaps, lifting, or cold spots. Pull-test the finished connection to confirm the adhesive bond.

✓

Watch

See 1/2" In Use

All Videos →

Voltage Protection with Adhesive Heat Shrink

0:30

Short

Voltage Protection with Adhesive Heat Shrink

0:30

Short

360° Waterproof Wire Splice

Size Reference

Expanded vs.
recovered.

Actual 1/2" tube at full expanded diameter (12.7mm) and after heat recovery. Use this as your fit reference before cutting.

Expanded: 12.7mm — slides over 2–4 AWG

Shrink ratio: 3:1 on full heat

1/2" 3:1 heat shrink tubing — expanded diameter 12.7mm versus recovered size reference diagram

1/2" · 12.7mm expanded3:1 recovery · fits 2–4 AWG

Use it on.

Try Before You Buy Bulk

Order a 10ft pack to verify the size fits your connector before committing to a large roll. Test fit, shrink one piece, then buy the bulk roll with confidence.

Field Repair Kits

Keep a set of short rolls on the service van or boat. Enough for any repair job without hauling large rolls — one 10ft roll handles most splices.

Stock Multiple Sizes Cheap

For the same cost as one large roll, stock several different sizes in short packs. Covers more connector diameters for the same investment.

Marine & Outdoor Spot Repairs

Seals individual connections on boat wiring, outdoor electrical, and trailer harnesses. Same waterproof adhesive seal as the large rolls — just 10ft.

Low-Volume Production

Ideal for small-batch cable assembly and prototype builds where a full bulk roll would sit unused. Cost-effective for runs of fewer than 50 connections.

One-Off Automotive Builds

Custom automotive and motorcycle builds often need several sizes in small quantities. Short rolls let you match every connection without leftover material.

Size Guide

1/2" Questions.

Technical Guides

From the Blog

All Guides →

Free Tool

1/2" 3:1 Large Roll →Bulk 20–60ft roll

All 13 sizes.

View line overview →

3/32"2.4mm10 ft 1/8"3.2mm10 ft 3/16"4.8mm10 ft 1/4"6.4mm10 ft 5/16"8mm10 ft 3/8"9.5mm10 ft

Current1/2"12.7mm10 ft

5/8"16mm10 ft 3/4"19.1mm10 ft 1"25.4mm10 ft 1-1/4"31mm10 ft 1-1/2"38mm10 ft 2"50.8mm10 ft

Recovered diameter is approx. 1/3 of the expanded size shown · All sizes ship to USA & Canada
