Better than electrical tape by far!
Used this on vehicles (starters) and trailer lights. Easy to use, looks like a professional fitting, and seems to hold tight.
Verified Buyer · Verified Purchase★ Verified
3:1 Dual Wall · 10ft Short Pack
1/4"
3:1 Heat Shrink
Fits10–12 AWG6.4mm
1/4 inch heat shrink tubing fits 10–12 AWG wire and is the size most often specified for sealing a crimped butt splice. ABYC E-11 Table XI rates 12 AWG at 20A and 10 AWG at 30A — navigation lights, bilge pumps, and accessory feeds. At 6.4mm expanded, it slides over bare 10 and 12 AWG conductors and recovers to about 2.1mm, but its more useful job is covering an insulated 22–18 AWG splice barrel, which measures 5–6mm and takes exactly this diameter. That dual duty is why 1/4 inch is the first size to run out in any service van. ABYC E-11 calls for adhesive-lined heat shrink over crimped connections in marine service; the hot-melt liner flows at 120°C and forms a 360° seal that single-wall tubing cannot. UL 224, 600V, -55°C to +125°C. A 10ft pack seals roughly 15–20 typical splices.
★★★★★4.7 · 225 verified ratings across the Helixal range
10 in stock · Ships in 24h
Order up to 10 online · need more? Trade pricing
Size1/4" · 6.4mm
Click any size to navigate · 10 ft per roll
$7.9910 ft spool
→ Dispatched within 24 hours — delivered in 1–3 days→ 30-day money-back guarantee — 30 days to return it
Qty
1
Secured by Stripe · No account needed
→Ships USA & Canada
→ISO 9001
→Ships 24h
SKU: B0FJNM9FGB · 1/4" (6.4mm) · 10 ft
Spec Sheet
1/4"
data sheet.
Full industrial dual-wall adhesive spec in a convenient 10ft pack. Same 600V rated, waterproof polyolefin construction as the large bulk rolls.
Imperial Size
1/4"
Expanded diameter
Metric Size
6.4mm
Nominal
Roll Length
10 ft
Per spool
Wire Gauge
10–12 AWG
Bare conductor
Shrink Ratio
3:1
Dual wall
Construction
Dual Wall
Adhesive inner liner
Inner Layer
Hot Melt Adhesive
Waterproof seal
Voltage Rating
600V AC
UL 224 — 600 V rms
Temp Rating
-55°C to +125°C
Continuous service
Shrink Temp
100°C (212°F)
Shrinking starts
Adhesive Flow
120°C (248°F)
Keep heating until it shows
Material
Polyolefin
Outer sleeve
Flammability
Self-extinguishing
UL 224 Recognized
Color
Black
Standard finish
Standards
UL 224 Recognized
UL file E361230 · RoHS
UV Resistance
Yes
Outdoor safe
Waterproof
Yes — adhesive seal
360° coverage
Sizing over a connector? The Wire Gauge row above is for bare conductor. Heat shrink must be sized to the widest point it passes over, so a crimped butt splice or lug barrel needs a larger tube than the wire alone — a 22–18 AWG splice barrel measures 5–6mm, a 16–14 AWG barrel 7–8mm, and a 12–10 AWG barrel 9–11mm. Measure the barrel, allow about 20% clearance, and confirm the recovered diameter is smaller than the narrowest thing the tube must grip. Use the size calculator.
What the
trade says.
Verified Buyers ★ · Full Range4.7★★★★★225 ratings · 84% 5-starCombined verified-buyer rating for every Helixal product — all ratios, all sizes — not this size alone.
Good quality and sealing heat shrink
Heat shrink works good. Makes a nice sealed wire connection. Better than pre-cut heat shrink — you can make whatever length you want.
R Davis · Verified Purchase★ Verified
Smart format for repair work
Great for keeping several sizes on hand without the bulk. Same quality as the large rolls — the adhesive seals perfectly every time.
Travis M. · Verified Purchase★ Verified
Customer Reviews
Loading reviews…
Sizing & Application — 1/4 inch, 10ft pack
The size that seals a butt splice, in the quantity you actually use.
1/4 inch (6.4mm) is the first size to empty in any service van, and the 10ft pack exists because of how it gets consumed. It does two jobs at once — it covers bare 10–12 AWG conductor, and it is the size most often specified for sealing a crimped 22–18 AWG butt splice, whose barrel measures 5–6mm. Both jobs consume 6–8 inches at a time, a few splices per repair, which is a very different pattern from running cable.
Why a crimped splice needs adhesive, not just a cover
A crimp is a gas-tight mechanical joint only at the moment it is made. Once water reaches it, the barrel and the conductor form a galvanic pair with salt as the electrolyte, and the joint corrodes from the inside where nothing can be inspected. The failure shows up as a high-resistance connection that gets hot under load, not as an obvious break.
ABYC E-11 calls for adhesive-lined heat shrink over crimped connections in marine service for exactly this reason. A single-wall tube covers the barrel but leaves the two entry throats open, and water tracks along the copper strands by capillary action from either end. The hot-melt liner in this tubing flows at 120°C, fills the throat, and bonds to both the barrel and the wire insulation.
Apply heat from the middle of the splice outwards so the adhesive is driven toward both ends and air escapes ahead of the shrink front. You have enough adhesive when a small bead appears at each end — that bead is the seal, and a joint with no visible bead usually has a void inside.
1/4 inch short pack at a glance
| Property | Figure | Why it matters |
|---|---|---|
| Expanded diameter | 6.4mm (1/4") | Clears a 5–6mm insulated splice barrel |
| Recovered diameter | ≈2.1mm | Grips bare 10–12 AWG and the wire insulation behind a splice |
| Bare wire range | 10–12 AWG | 20A for 12 AWG, 30A for 10 AWG (ABYC E-11 Table XI) |
| Wall type | 3:1 dual wall, hot-melt lined | Seals rather than covers; liner flows at 120°C |
| Pack length | 10 ft | Roughly 15–20 typical splices at 6–8 in each |
| Bulk equivalent | 60 ft roll | Step up once this size becomes routine stock |
Recovered diameter is nominal at full recovery. Size to the widest point the tube must pass over — usually the crimp barrel, not the wire.
When to reach for a different size
01 · Splice is on 16–14 AWG
That barrel measures 7–8mm and will not enter a 6.4mm bore. Use the 3/8 inch pack over the splice and keep 1/4 inch for the conductor either side.
02 · Bare fine-gauge wire
On 20–22 AWG conductor a 1/4 inch tube recovers loose. Drop to 3/32 inch for the wire itself and reserve 1/4 inch for the splice it feeds.
03 · You use this size weekly
The 10ft pack is a spot-repair quantity. Once 1/4 inch becomes routine consumption, the 60ft large roll is materially cheaper per foot.
04 · Above 600V
This tubing is rated 600V rms, and we hold no rating above it. On a 1000 Vdc circuit the conductor must already carry the insulation rating, and tubing seals rather than insulates.
Keep reading →1/4" 3:1 Dual Wall — 60ft bulk roll · How to waterproof wire connections · Heat Shrink Tubing Size Chart & Selection Guide
How it shrinks.
01
Measure & Select
Verify the expanded diameter is 20–30% larger than your wire or connector. The tubing must slide freely before heat is applied — if it drags, go one size up.
02
Cut & Thread
Cut to length and thread onto the wire or cable before making the splice or crimp. Overlap each terminal or connector end by at least 10mm for a proper seal.
03
Apply Heat
The tubing starts shrinking at 100°C, but the adhesive liner only flows at 120°C — so keep the heat gun moving past the point where it looks shrunk. Start at the center and work outward to push air toward the ends. Adhesive will appear at the tube ends — that is your visual seal indicator.
04
Inspect
The tubing should be tight and uniform with adhesive visible at both ends. No gaps, lifting, or cold spots. Pull-test the finished connection to confirm the adhesive bond.

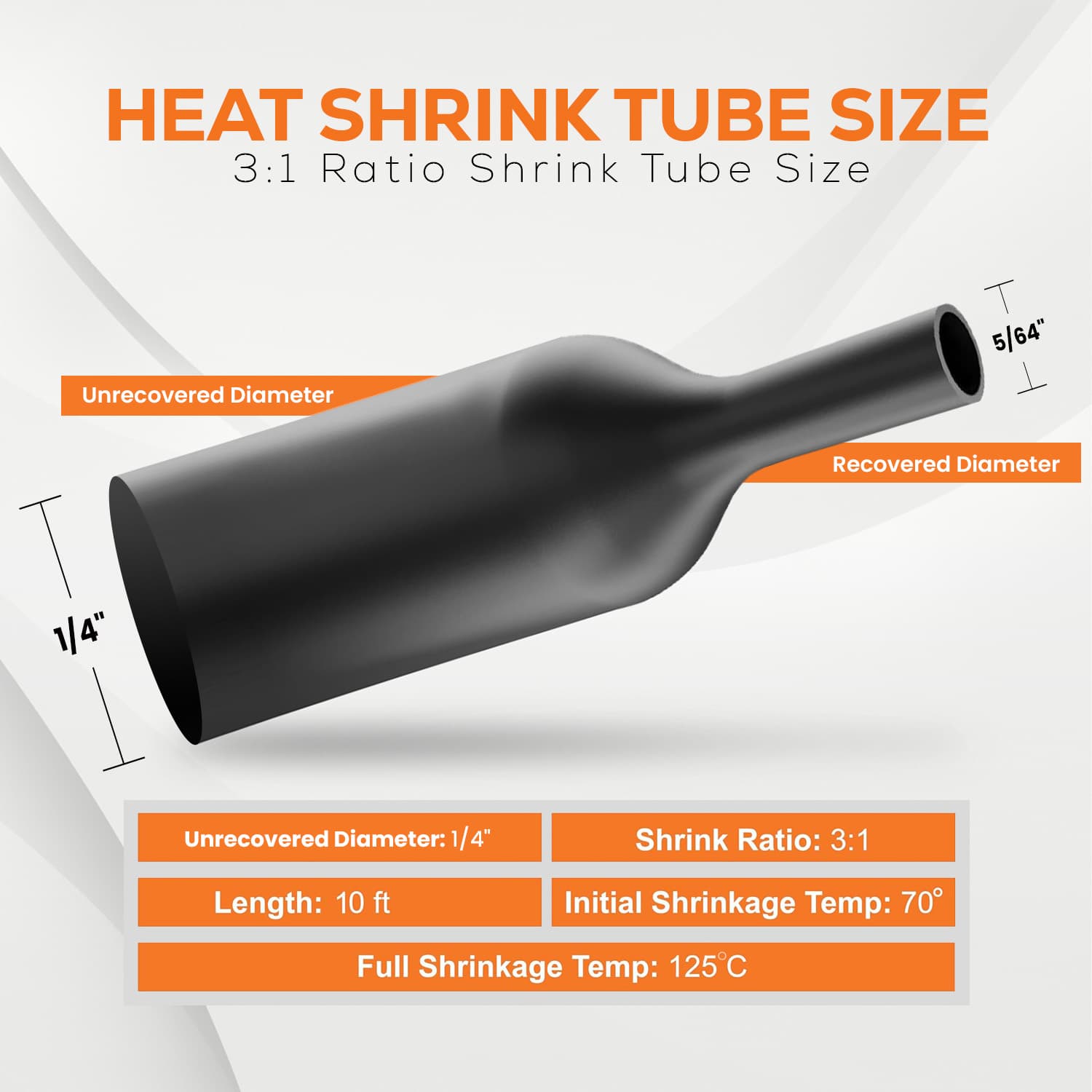

Size ReferenceExpanded vs.
Expanded vs.
recovered.
Actual 1/4" tube at full expanded diameter (6.4mm) and after heat recovery. Use this as your fit reference before cutting.
Expanded: 6.4mm — slides over 10–12 AWG
Shrink ratio: 3:1 on full heat
Use it on.
01
Try Before You Buy Bulk
Order a 10ft pack to verify the size fits your connector before committing to a large roll. Test fit, shrink one piece, then buy the bulk roll with confidence.
02
Field Repair Kits
Keep a set of short rolls on the service van or boat. Enough for any repair job without hauling large rolls — one 10ft roll handles most splices.
03
Stock Multiple Sizes Cheap
For the same cost as one large roll, stock several different sizes in short packs. Covers more connector diameters for the same investment.
04
Marine & Outdoor Spot Repairs
Seals individual connections on boat wiring, outdoor electrical, and trailer harnesses. Same waterproof adhesive seal as the large rolls — just 10ft.
05
Low-Volume Production
Ideal for small-batch cable assembly and prototype builds where a full bulk roll would sit unused. Cost-effective for runs of fewer than 50 connections.
06
One-Off Automotive Builds
Custom automotive and motorcycle builds often need several sizes in small quantities. Short rolls let you match every connection without leftover material.
